Seal Faces: Carbon Graphite / Reaction‑Bonded SiC / Sintered SiC / Tungsten Carbide (Co‑Cr / Ni‑Binder)
Metal Bellows: Inconel 718, Alloy C‑276, 316L Stainless Steel
Secondary Seals: Flexible Graphite, PTFE, Kalrez® (no dynamic elastomers)
Hardware: 316L, Alloy C‑276, Titanium

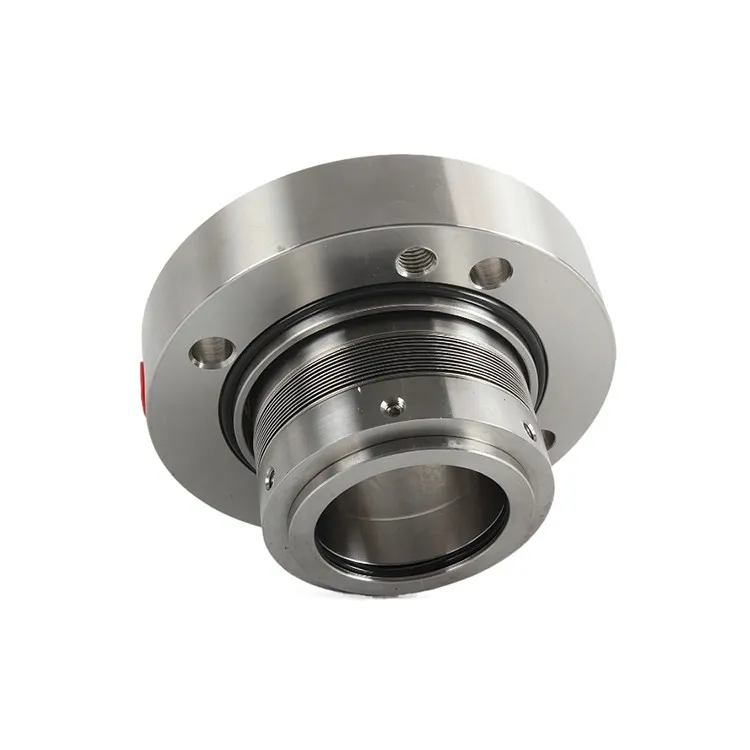

MOR LBG Metal Bellows Cartridge Seal is a balanced, rotating welded metal bellows cartridge mechanical seal, designed for reliable sealing in high-temperature, corrosive, and crystallizing fluid services in centrifugal pumps and rotating equipment. It features a fully integrated cartridge design for easy installation and zero elastomer dynamic sealing, making it ideal for harsh process conditions.
Key Features
Cartridge Unitized Design: Pre-assembled, self-contained cartridge for fast, error-free installation; no shaft adjustment or component alignment required.
Balanced Rotating Metal Bellows: Thin-walled welded metal bellows (Inconel/316L) provides uniform face loading, compensates for shaft movement, vibration, and thermal expansion.
Zero Dynamic Elastomers: Eliminates O‑ring hang‑up, degradation, or cold‑flow issues; operates beyond elastomer temperature limits.
Self‑Cleaning Bellows Profile: Rotating design prevents buildup of solids, crystals, or coke; ideal for fouling services.
Hydraulically Balanced: Reduces seal face loading for high‑pressure capability and extended life.
Robust Drive Mechanism: Positive torque transfer via drive lugs/slots; no set screws on shaft.
Wide Shaft Accommodation: Fits standard pump seal chambers; available in single and dual (API 682) configurations.
Advantages
Extreme Temperature Resistance: Operates reliably at ‑70°C to 400°C, far exceeding elastomer‑based seals.
Corrosion & Fouling Resistance: Performs in acids, alkalis, solvents, and crystallizing/coking fluids.
No Elastomer Failure: Eliminates common failure modes in harsh environments.
Low Maintenance & Long Life: Reduced downtime; extended MTBR (Mean Time Between Repair).
Easy Installation: Cartridge design cuts installation time and avoids misalignment.
API Compliance: Meets stringent refinery/petrochemical standards for safety and emissions.
Typical Applications
Refining & Petrochemical: Crude/vacuum distillation, FCC slurry, hydrocracking, delayed coking, hot oil, asphalt, and LPG pumps.
Chemical Processing: Strong acids, caustics, solvents, molten salts, and crystallizing media.
Power Generation: Boiler feed, condensate, ash slurry, and flue‑gas desulfurization pumps.
Pharmaceutical & Food: High‑purity, sterile, and high‑temperature process fluids.
Pulp & Paper: Black liquor, white liquor, and fibrous slurry pumps.
Mining & Metallurgy: Acid leach, electrolyte, and mineral slurry pumps.
