Teflon bellow seals are widely recognized for their excellent chemical resistance, flexibility, and durability, making them a popular choice in various industrial applications. As a supplier of teflon bellow seals, I often receive inquiries about the maximum pressure these seals can withstand. In this blog post, I will delve into the factors that determine the pressure - bearing capacity of teflon bellow seals and provide some insights based on industry knowledge and experience.
Understanding Teflon Bellow Seals
Teflon, also known as polytetrafluoroethylene (PTFE), is a synthetic fluoropolymer with unique properties. Its low friction coefficient, high chemical resistance, and wide temperature range make it suitable for use in harsh environments. A teflon bellow seal consists of a teflon bellows element that provides flexibility and acts as a sealing barrier between two media. The bellows can compensate for axial, radial, and angular movements, ensuring a reliable seal even under dynamic conditions.
Factors Affecting the Maximum Pressure
Material Properties
The quality and characteristics of the teflon material used in the bellow seal play a crucial role in determining its pressure - bearing capacity. High - quality PTFE with proper additives and processing can enhance its mechanical strength and resistance to deformation. For example, some specialized PTFE formulations may have improved tensile strength and creep resistance, allowing the seal to withstand higher pressures without permanent damage.
Design and Geometry
The design of the teflon bellow seal, including the shape, thickness, and number of convolutions in the bellows, significantly impacts its pressure resistance. A well - designed bellows with optimized geometry can distribute the pressure evenly across its surface, reducing stress concentrations. For instance, a bellow with a larger number of convolutions may be more flexible and better able to absorb pressure fluctuations compared to a bellow with fewer convolutions.
Operating Conditions
The operating environment in which the teflon bellow seal is used also affects its maximum pressure. Factors such as temperature, chemical compatibility, and the presence of abrasive particles can all influence the seal's performance. High temperatures can reduce the mechanical strength of the teflon material, while exposure to aggressive chemicals may cause degradation. Additionally, abrasive particles in the medium can wear down the seal surface, leading to premature failure at lower pressures.
Industry Standards and Testing
To determine the maximum pressure a teflon bellow seal can withstand, industry standards and testing procedures are often employed. Manufacturers typically conduct rigorous tests on their products to ensure they meet specific performance criteria. These tests may include hydrostatic pressure testing, where the seal is subjected to increasing pressures until failure occurs. The results of these tests are used to establish the maximum allowable pressure for the seal under specific conditions.
Examples of Pressure Ratings in Different Applications
In general, the maximum pressure a teflon bellow seal can withstand can vary widely depending on the application. In some low - pressure applications, such as in laboratory equipment or small - scale chemical processing, teflon bellow seals may be able to handle pressures up to a few bar. However, in more demanding industrial applications, such as in high - pressure pumps or pipelines, the seals may be designed to withstand pressures of several tens or even hundreds of bar.

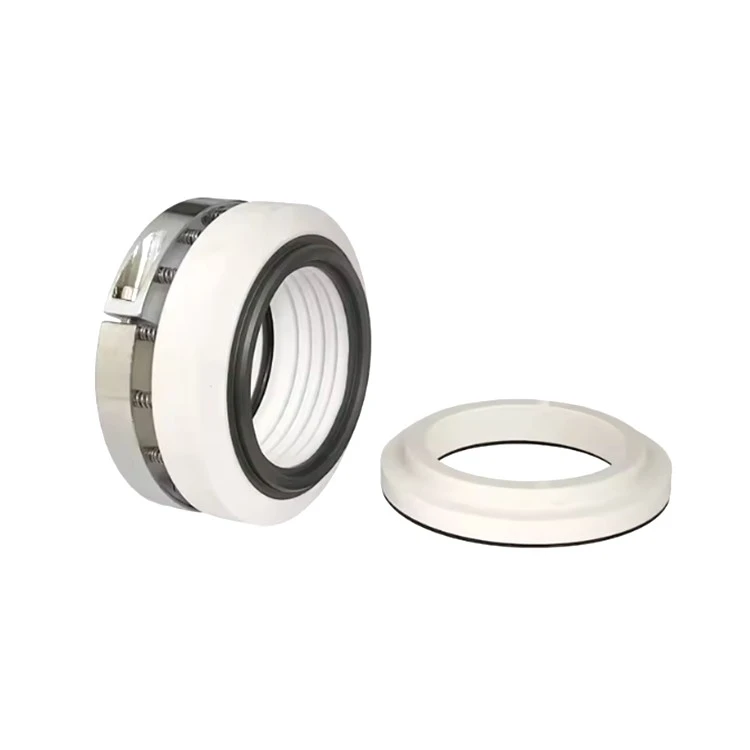

For example, our 212 Multi Spring Balanced Teflon Bellow Mechanical Seal is specifically engineered for high - pressure applications. It has been tested and proven to withstand pressures in excess of 50 bar, making it suitable for use in centrifugal pumps and other equipment where reliable sealing under high pressure is essential.
Another example is our MOR 58U 59U Mechanical Seal for Centrifugal Pump. This seal is designed to provide a high - performance sealing solution in a wide range of pressure conditions. It is equivalent to the Equivalent to type 2 mechanical seal in terms of its pressure - bearing capacity and sealing performance, making it a versatile choice for various industrial applications.
Importance of Choosing the Right Seal
Selecting the appropriate teflon bellow seal for a specific application is crucial to ensure optimal performance and reliability. Using a seal with a lower pressure rating than required can lead to seal failure, leakage, and potential safety hazards. On the other hand, over - specifying the seal by choosing one with a much higher pressure rating than necessary can result in unnecessary costs.
As a supplier, we work closely with our customers to understand their specific requirements and recommend the most suitable teflon bellow seals. Our team of experts can provide technical support and guidance on seal selection, installation, and maintenance to ensure that our customers get the best possible performance from our products.
Contact Us for Procurement and Consultation
If you are in the market for teflon bellow seals and need to determine the maximum pressure requirements for your application, we are here to help. Our extensive range of teflon bellow seals is designed to meet the diverse needs of various industries. Whether you are looking for a seal for a low - pressure or high - pressure application, we can provide you with the right solution.
We invite you to contact us for more information about our products, including detailed specifications, pressure ratings, and pricing. Our sales team is ready to assist you with your procurement needs and answer any questions you may have. Let's work together to find the perfect teflon bellow seal for your application and ensure the reliable operation of your equipment.
References
- "Handbook of Seal Technology" by John H. Birkle
- "Mechanical Seals: Principles and Applications" by A. W. Lebeck
